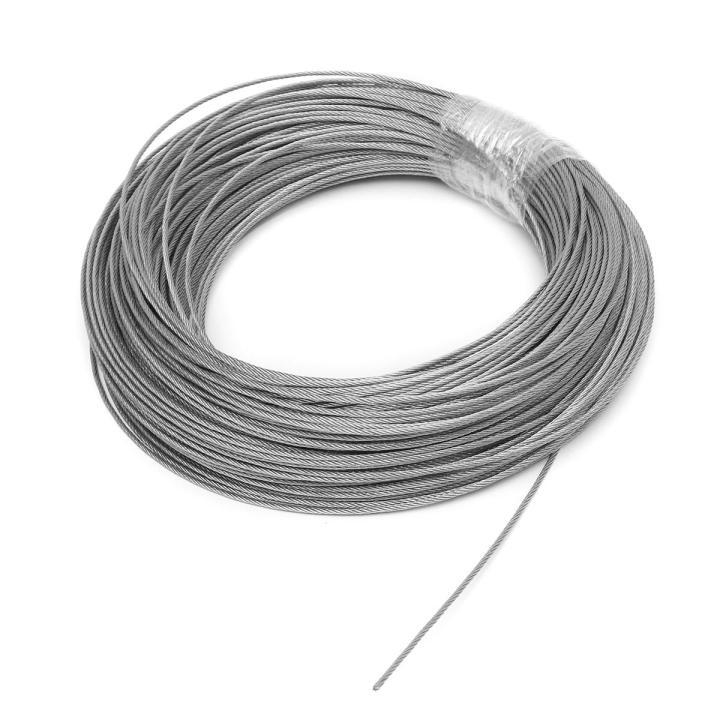

7x7 Galvanized steel wire cable
Diameter:2 .0~50mm
Standard: GB/20118-2017, EN12385, GB8916-2006

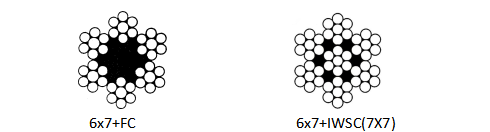

Structure: 7x7, 6x7+FC,,6X7+IWRC
Strength: 1570mpa, 16701770mpa,1870mpa,1960mpa
Surface: Electro-galvanized , Hot dipped galvanized , , Oiled coated, PE/PVC coated
Application: Machinery, Construction, Marine,Fishery,Logging,Mining, Mine Hoist, Blast-furnace Hoist, Heavy Casting, Oil Drilling, Heavy Lifting, Frequent Lifting, Ropeway, Ground Cable Car, Marine, Offshore Facilities.
Diameter /mm |
GB/20118-2017 , EN12385-4 |
Approx. Weight(kg/100m) |
Min. Breaking Force(KN) |
Fibre core |
Steel core |
1570N/mm² |
1770N/mm² |
1960N/mm² |
Fibre core |
Steel core |
Fibre core |
Steel core |
Fibre core |
Steel core |
2 |
1.4 |
1.55 |
2.08 |
2.25 |
2.35 |
2,54 |
2.6 |
2,81 |
3 |
3.16 |
3.48 |
4.69 |
5.07 |
5.29 |
5,72 |
5.86 |
6,33 |
4 |
5.62 |
6.19 |
8.34 |
9.02 |
9.4 |
10,2 |
10.4 |
11,3 |
5 |
8.78 |
9.68 |
13.0 |
14.1 |
14.7 |
15,9 |
17.6 |
17,6 |
6 |
12.6 |
13.9 |
18.8 |
20.3 |
21.2 |
22,9 |
25.3 |
25,3 |
7 |
17.2 |
19.0 |
25.5 |
27.6 |
28.8 |
31,1 |
34.5 |
34,5 |
8 |
22.5 |
24.8 |
33.4 |
36.1 |
37.6 |
40,7 |
37.6 |
45,0 |
9 |
28.4 |
31.3 |
44.2 |
45.7 |
47.6 |
51,5 |
47.6 |
57,0 |
10 |
35.1 |
38.7 |
52.1 |
56.4 |
58.8 |
63,5 |
58.8 |
70,4 |
11 |
42.5 |
46.8 |
63.1 |
68.2 |
71.1 |
76,9 |
71.1 |
85,1 |
12 |
50.5 |
55.7 |
75.1 |
81.2 |
84.6 |
91,5 |
84.6 |
101 |
13 |
59.3 |
65.4 |
88.1 |
95.3 |
99.3 |
107 |
99.3 |
119 |
14 |
68.8 |
75.9 |
102 |
110 |
115 |
125 |
115 |
138 |
16 |
89.9 |
99.1 |
133 |
144 |
150 |
163 |
150 |
180 |
18 |
114 |
125 |
169 |
183 |
190 |
206 |
190 |
228 |
20 |
140 |
155 |
208 |
225 |
235 |
254 |
235 |
281 |
22 |
170 |
187 |
252 |
273 |
284 |
308 |
284 |
341 |
24 |
202 |
223 |
300 |
325 |
338 |
366 |
338 |
405 |
26 |
237 |
262 |
352 |
381 |
397 |
430 |
397 |
476 |
28 |
275 |
303 |
409 |
442 |
461 |
498 |
461 |
552 |
32 |
359 |
396 |
534 |
577 |
602 |
651 |
602 |
721 |
36 |
455 |
502 |
676 |
730 |
762 |
824 |
762 |
912 |
40 |
562 |
619 |
834 |
902 |
940 |
1020 |
940 |
1130 |
44 |
680 |
749 |
1010 |
1090 |
1140 |
1230 |
1260 |
1360 |
