Glavanized steel wire rope

6x19+FC galvanized steel wire rope/cable

6x19+FC galvanized steel wire rope, 6x19+FC steel cable
EMAIL INQUIRY

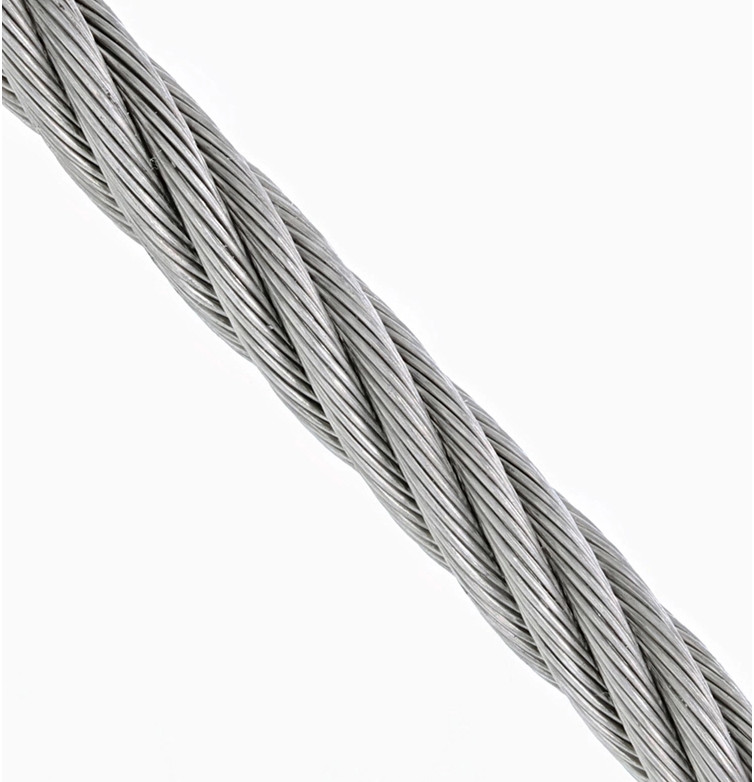

6x19+FC Galvanized steel wire cable
Diameter:2 .0~50mm
Standard: GB/20118-2017, EN12385, GB8916-2006

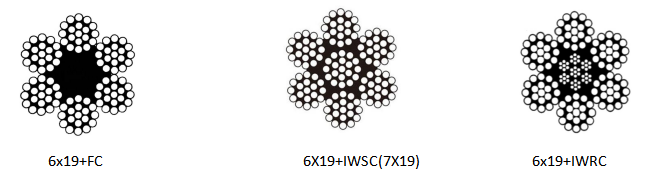

Structure: 6x19+FC,,6X19+IWRC, 7X19,
Strength: 1570mpa, 16701770mpa,1870mpa,1960mpa
Surface: Electro-galvanized , Hot dipped galvanized , , Oiled coated, PE/PVC coated
Application: Machinery, Construction, Marine,Fishery,Logging,Mining, Mine Hoist, Blast-furnace Hoist, Heavy Casting, Oil Drilling, Heavy Lifting, Frequent Lifting, Ropeway, Ground Cable Car, Marine, Offshore Facilities.

Diameter /mm	GB/20118-2017
	Approx. Weight(kg/100m)		Min. Breaking Force(KN)
	Fibre core	Steel core	1570N/mm²		1770N/mm²		1960N/mm²
	Fibre core	Steel core	Fibre core	Steel core	Fibre core	Steel core	Fibre core	Steel core
3	3.16	3.6	4.34	4.69	4.89	5.29	5.42	5.86
4	5.62	6.4	7.71	8.34	8.69	9.4	9.63	10.4
5	8.78	10.0	12.0	13.0	13.6	14.7	15.0	16.3
6	12.6	14.4	17.4	18.8	19.6	21.2	21.7	23.4
7	17.2	19.6	23.6	25.5	26.6	28.8	29.5	31.9
8	22.5	25.6	30.8	33.4	34.78	37.6	38.5	41.6
9	28.4	32.4	39.0	42.2	44.01	47.6	48.7	52.7
10	35.1	40	48.2	52.1	54.34	58.8	60.2	65.1
11	42.5	48.4	58.3	63.1	65.75	71.1	72.8	78.7
12	50.5	57.6	69.4	75.1	78.25	84.6	86.6	93.7
13	59.3	67.6	81.5	88.1	91.83	99.3	102	110
14	68.8	78.4	94.5	102	106	115	118	128
16	89.9	102	123	133	139	150	154	167
18	114	130	156	169	176	190	195	211
20	140	160	193	208	217	235	241	260
22	170	194	233	252	263	284	291	315
24	202	230	278	300	312	338	347	375
26	237	270	326	352	367	397	407	440
28	275	314	378	409	426	461	472	510
32	359	410	494	534	556	602	616	666
36	455	518	625	676	704	762	780	843
40	562	640	771	834	869	940	963	1010
44	680	774	933	1010	1050	1140	1160	1260
